loop's tent - Tsunami

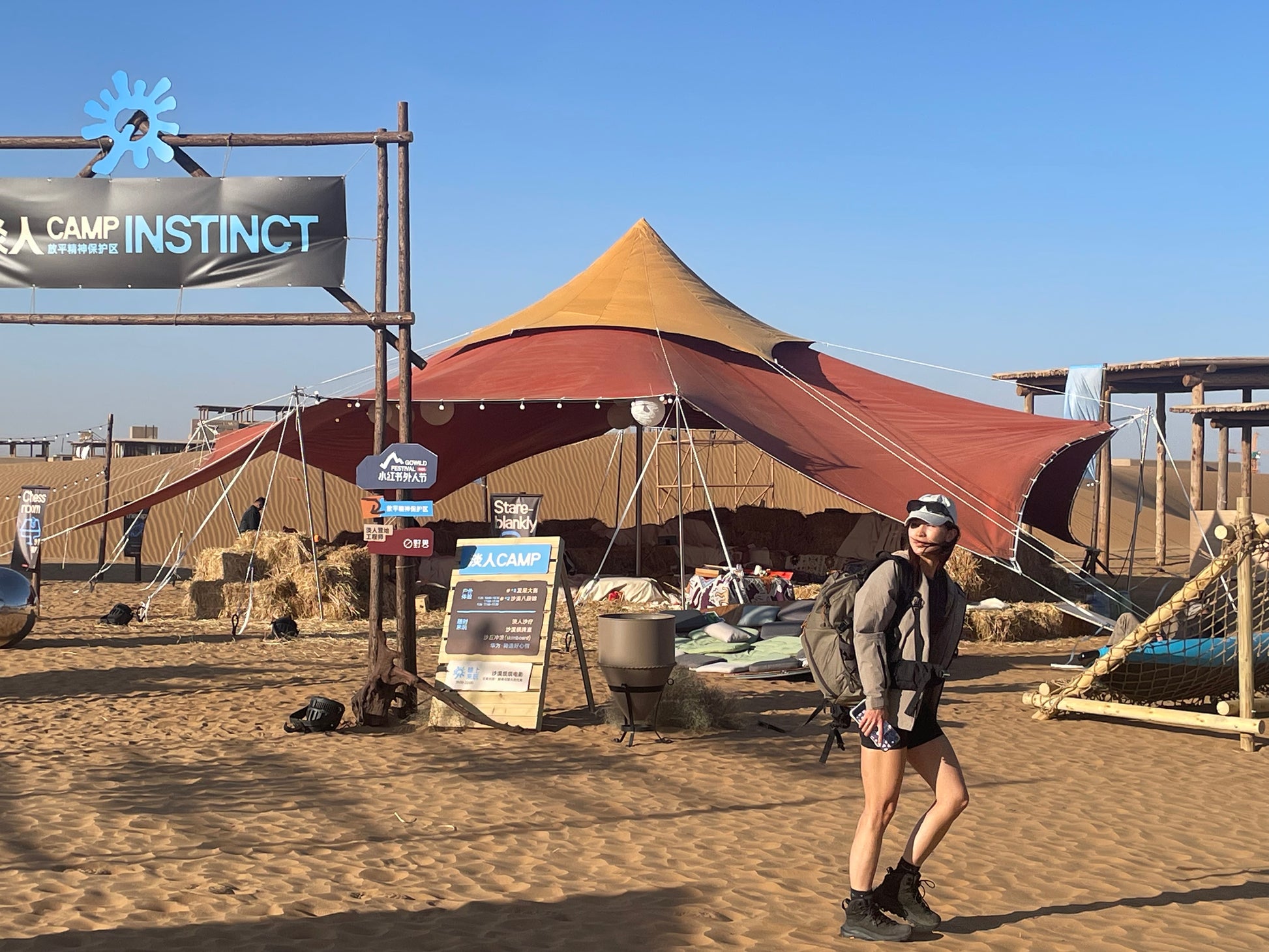

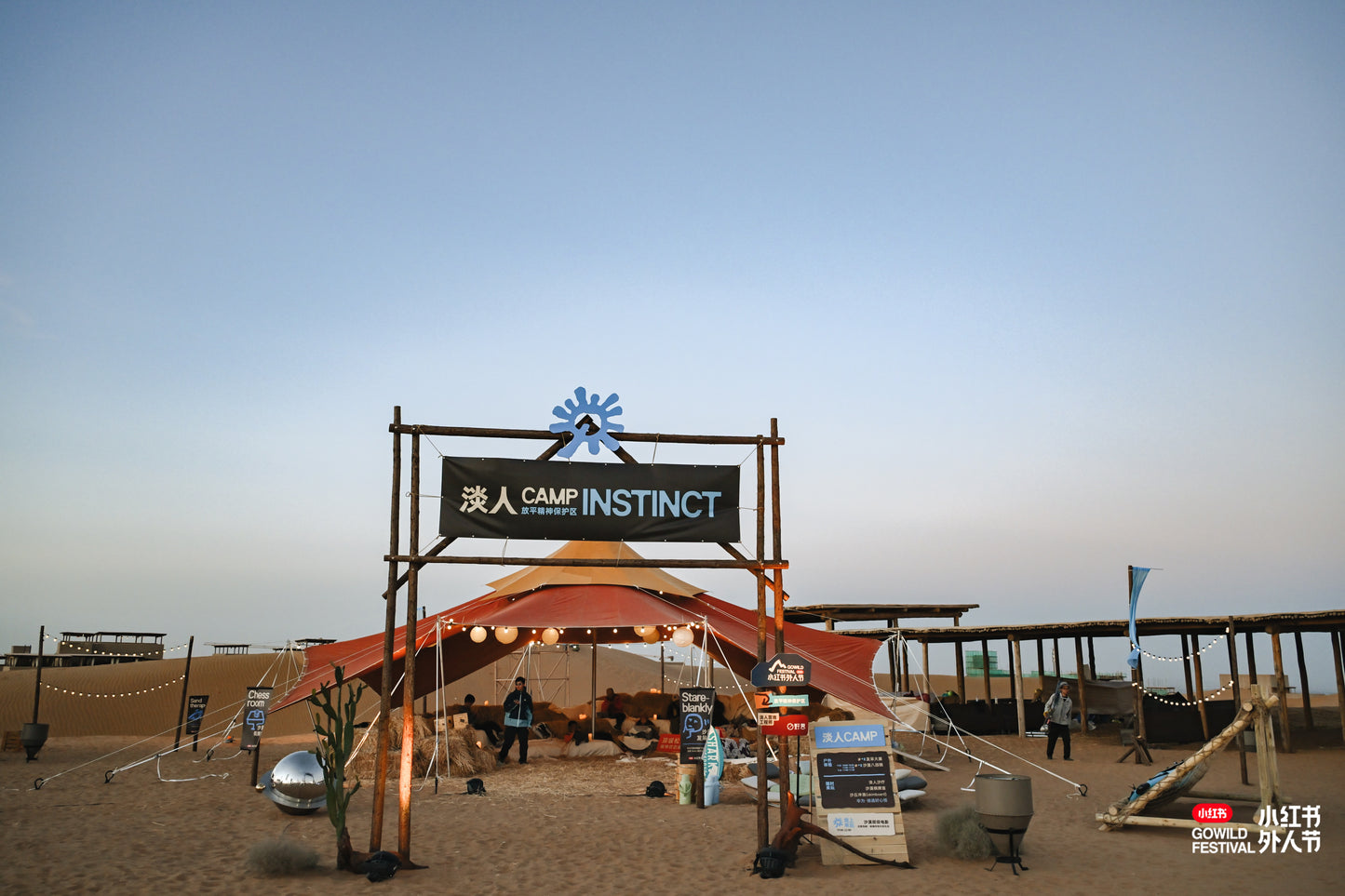

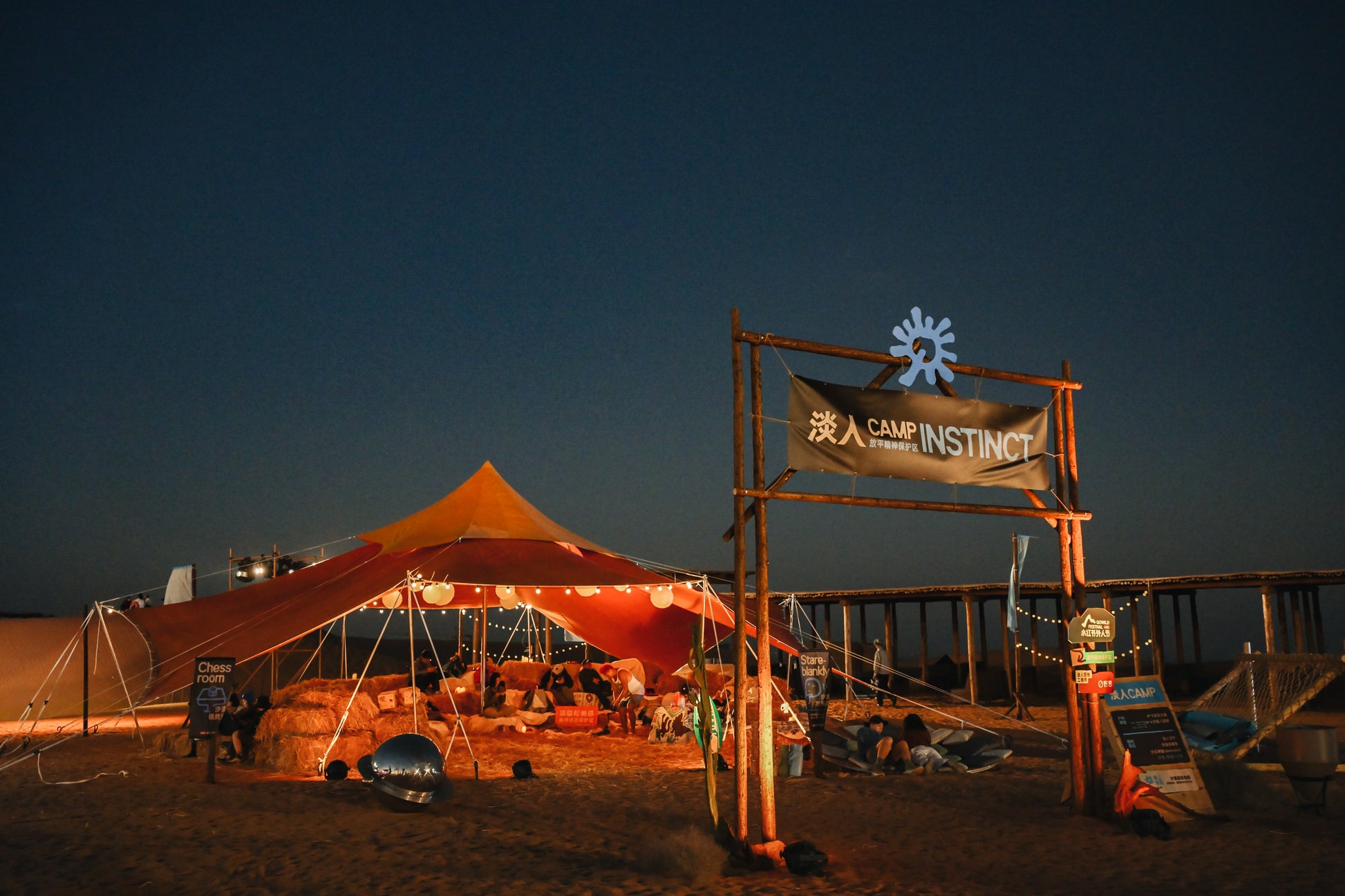

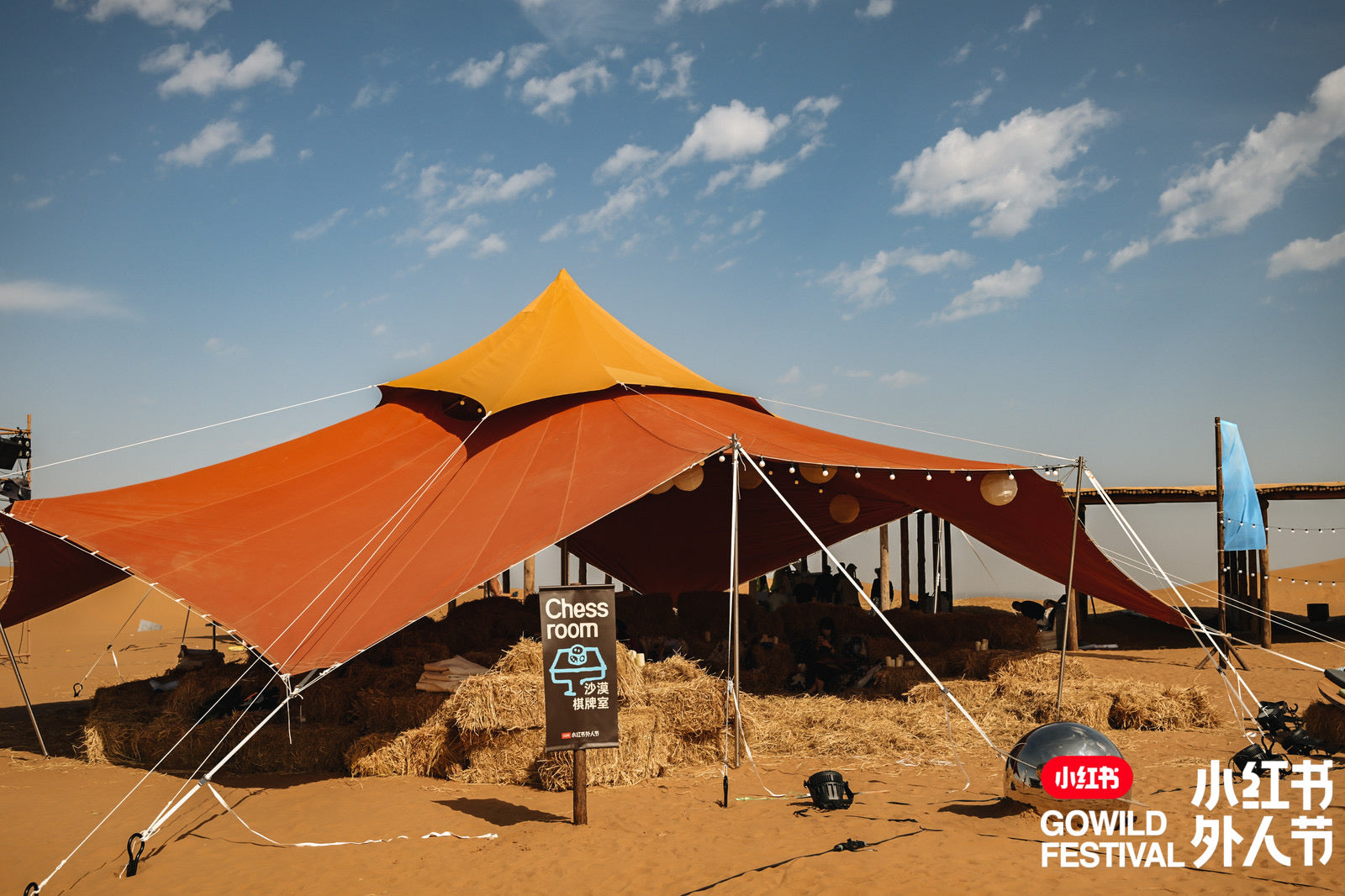

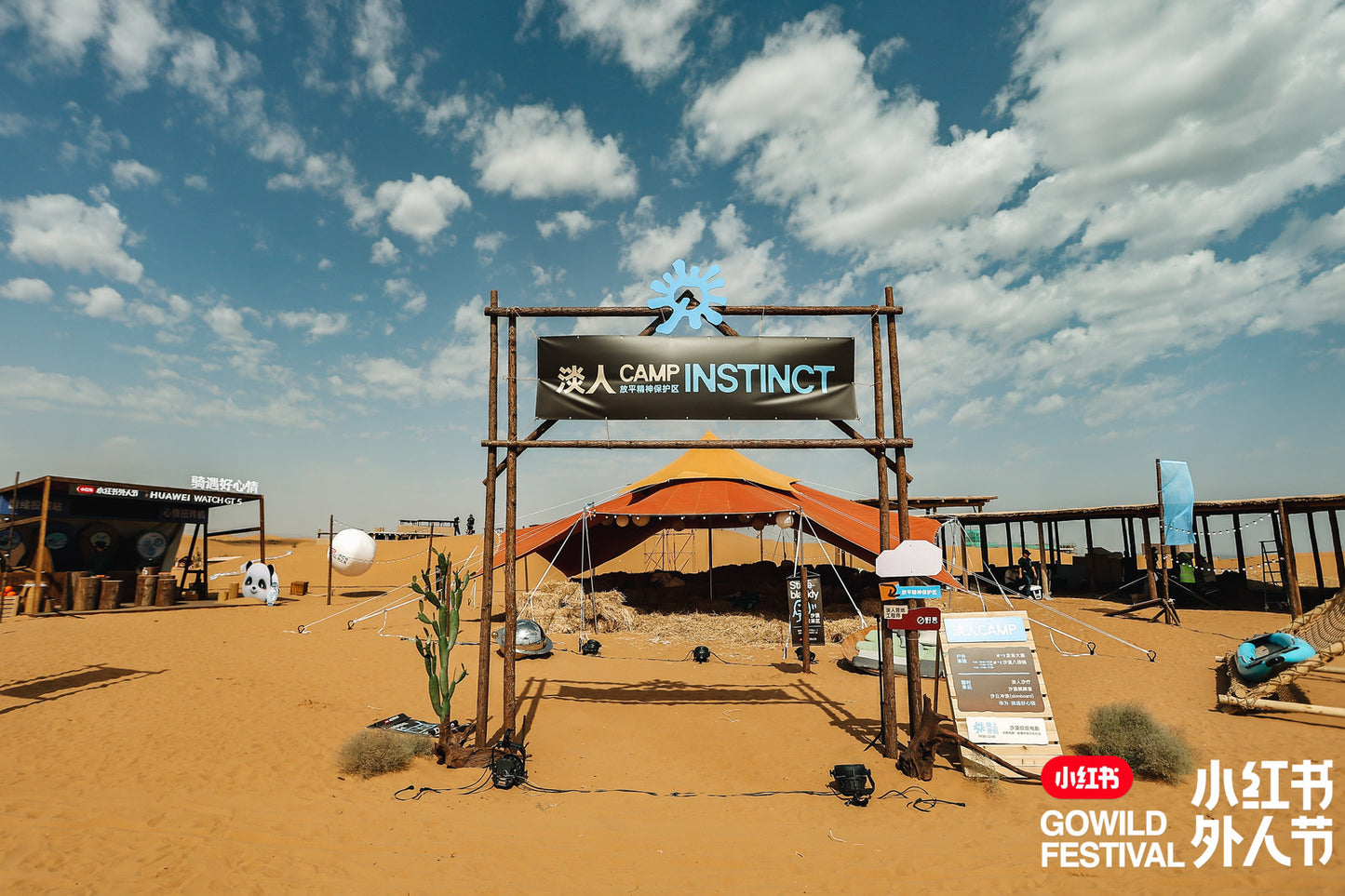

The Tsunami Tent features the Loop Tent's signature red main body and ginger-yellow canopy. Its standout characteristics are its large size and exceptional sturdiness. Inspired by Middle Eastern Bedouin tents, it is designed with a low profile relative to its expansive area to withstand strong desert winds, making it ideal for windy regions. The tent utilizes a double-layer design common to Loop Tents, with a gap between the canopy and main body to enhance summer ventilation. Additionally, it includes numerous accessories. Using the internal sunshade can add up to three layers of shading for increased summer comfort. The four-sided canopy expansion allows for nearly double the area with ease.

Features

• Large and Sturdy: Ideal for windy areas.

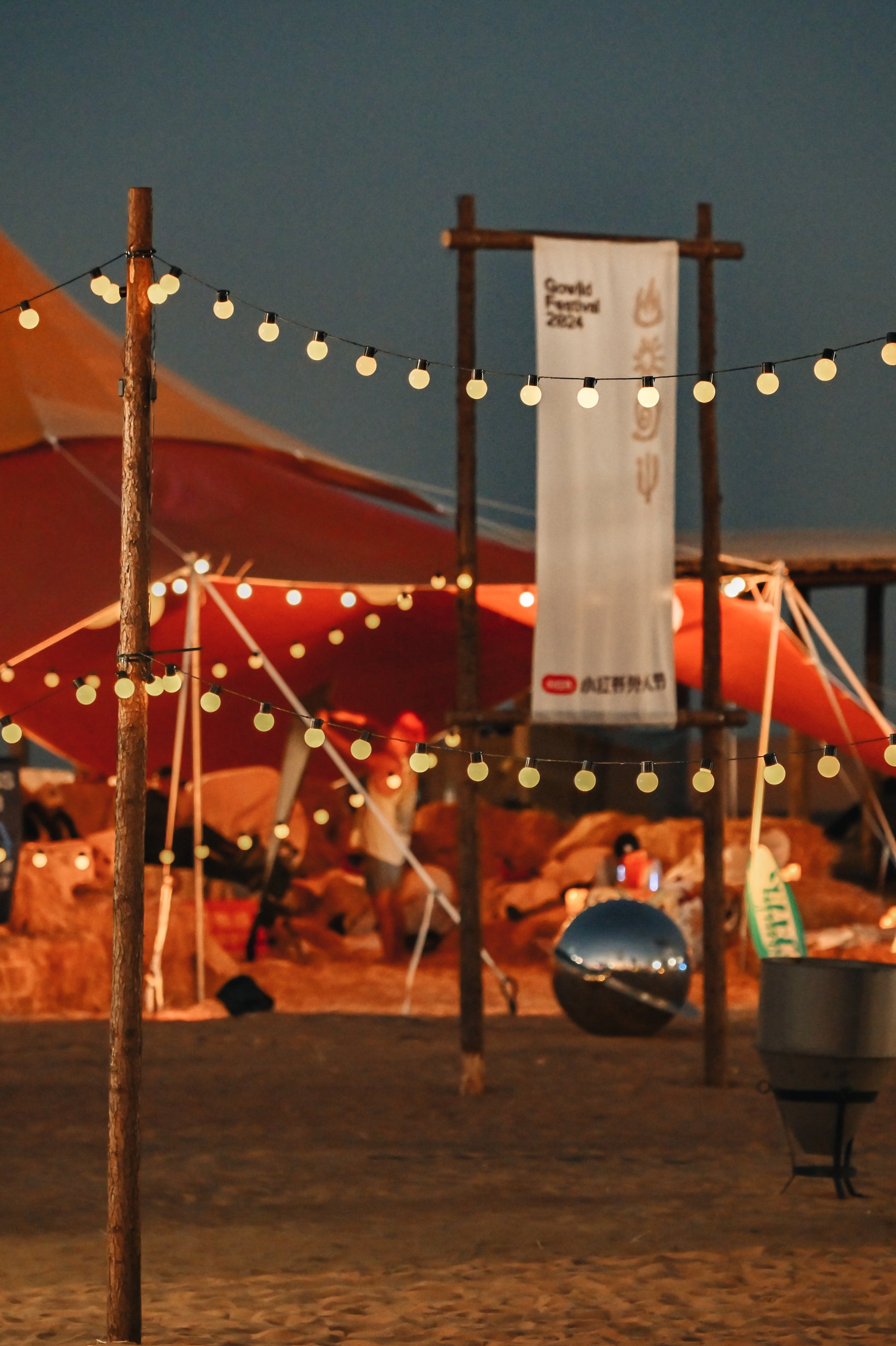

• Reverse Tie-Down Straps: Enhance tent stability and provide attachment points for lightweight hanging items such as string lights or small lanterns.
• Versatile Accessories: From internal sunshades to edge canopies, numerous accessories enable the tent to adapt to various activities.

Fabric

• Reinforced Polyester Fabric:
  • Low Water Absorption: Polyester's minimal water absorption provides excellent basic mold resistance.
  • Fiber Blend: A mix of long and short fibers creates a rougher surface, resembling traditional cotton canvas.
  • High-Density Reinforcement: Enhanced warp and weft density increases tensile strength, forming small grid patterns on the surface.
  • Note: Due to material properties, seams cannot be treated, allowing potential rainwater seepage. For durability, no additional coatings are applied, ensuring excellent light-blocking and breathability to keep you cool in summer.

Specifications

• Components:
  • Main Body: 1 unit
    • Fabric: Polyester blend
    • Canopy: Polyester blend
    • Corners: UHMWPE (Ultra-High-Molecular-Weight Polyethylene)
  • Central Pole: 1 unit
    • Material: Aerospace-grade aluminum
    • Diameter: Φ80mm
    • Total Length: 5300 cm
  • Side Poles: 2 units
    • Material: Aerospace-grade aluminum
    • Diameter: Φ50mm
    • Total Length: 200 cm
  • Tie-Down Webbing: UHMWPE
  • Fasteners: Galvanized U-shaped fasteners
  • Tie-Down Ropes: 5mm UHMWPE ropes
• Material: Polyester blend
• Weight:
  • Total: 170 kg (Main body: 70 kg, Metal parts: 100 kg)
• Storage Size:
  • Packaging: Three bags for the tent fabric
  • Dimensions: 77 cm (L) × 36 cm (W) × 23 cm (H)

Dimensions

• Flat Dimensions:
  • Maximum Diameter (e): 14 m
  • Canopy Diameter (f): 3 m
  • Side Pole Drop Distance from Central Pole (g): 6.5 m
  • Ground Tie Point Distance from Central Point (h): 11 m
• Vertical Dimensions:
  • Total Height (a-b): 6.3 m
  • Umbrella Body Height (a-c): 4.2 m
  • Side Pole Vertical Height (c-d): 1.9 m
