Loop's Tent - Volcano

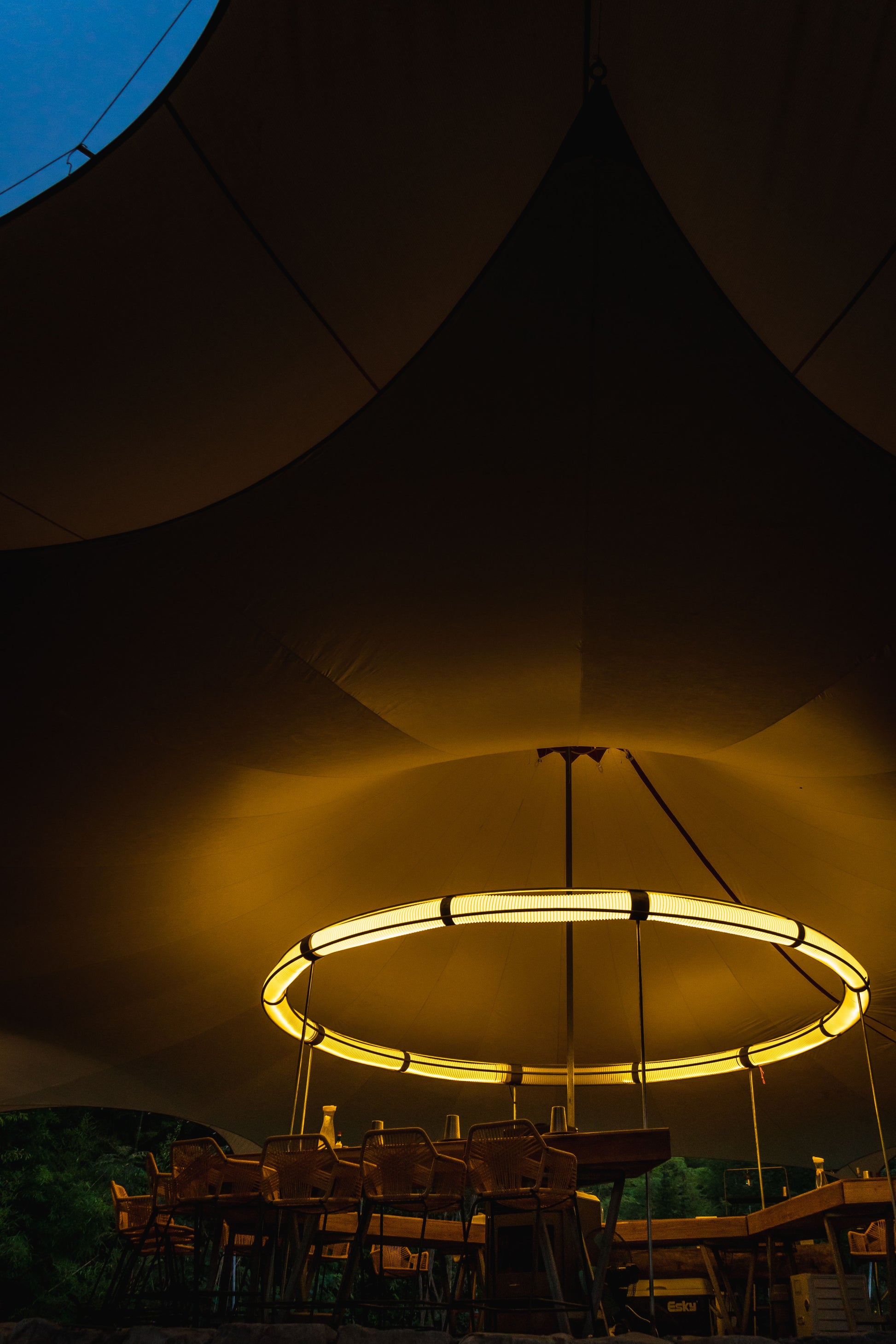

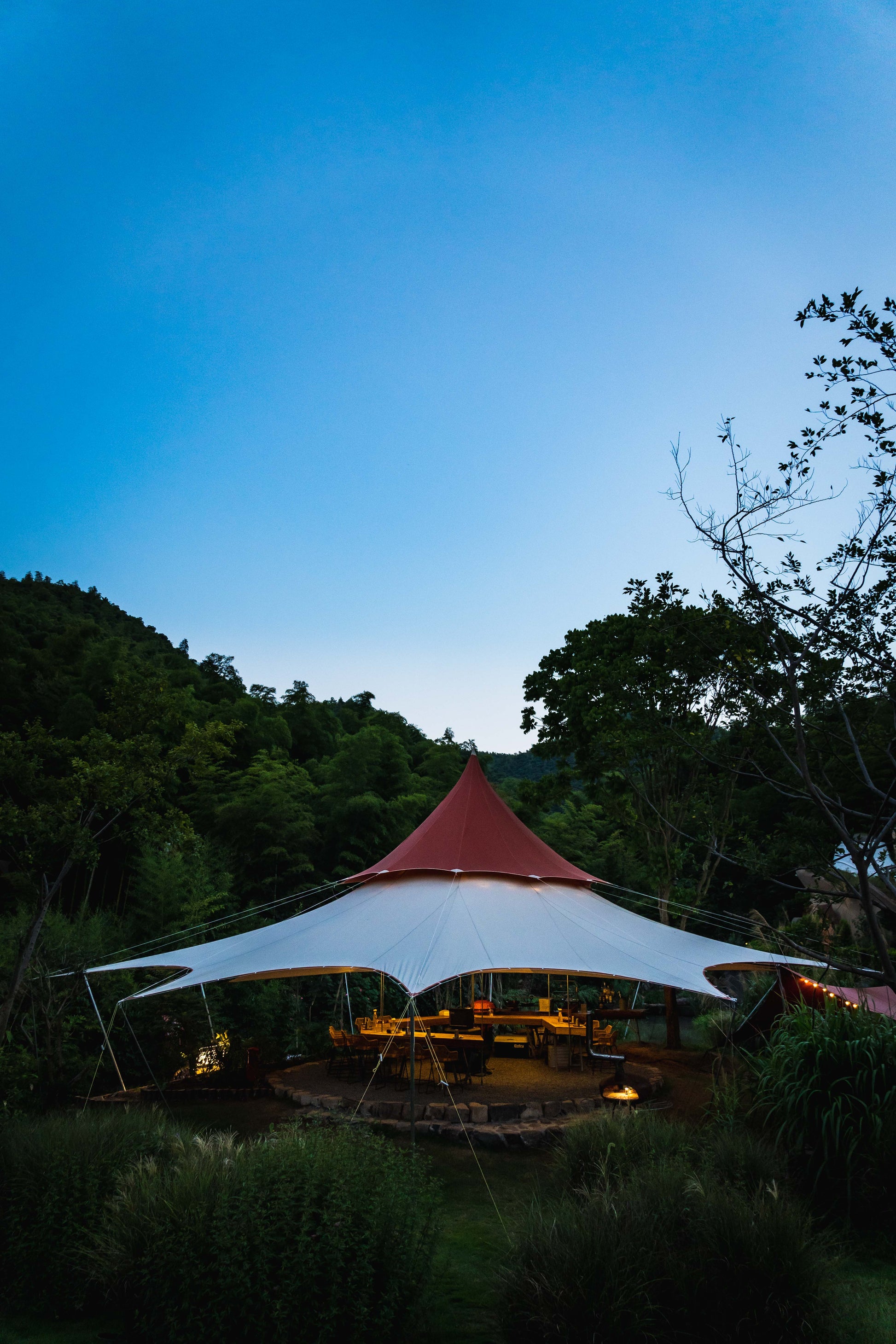

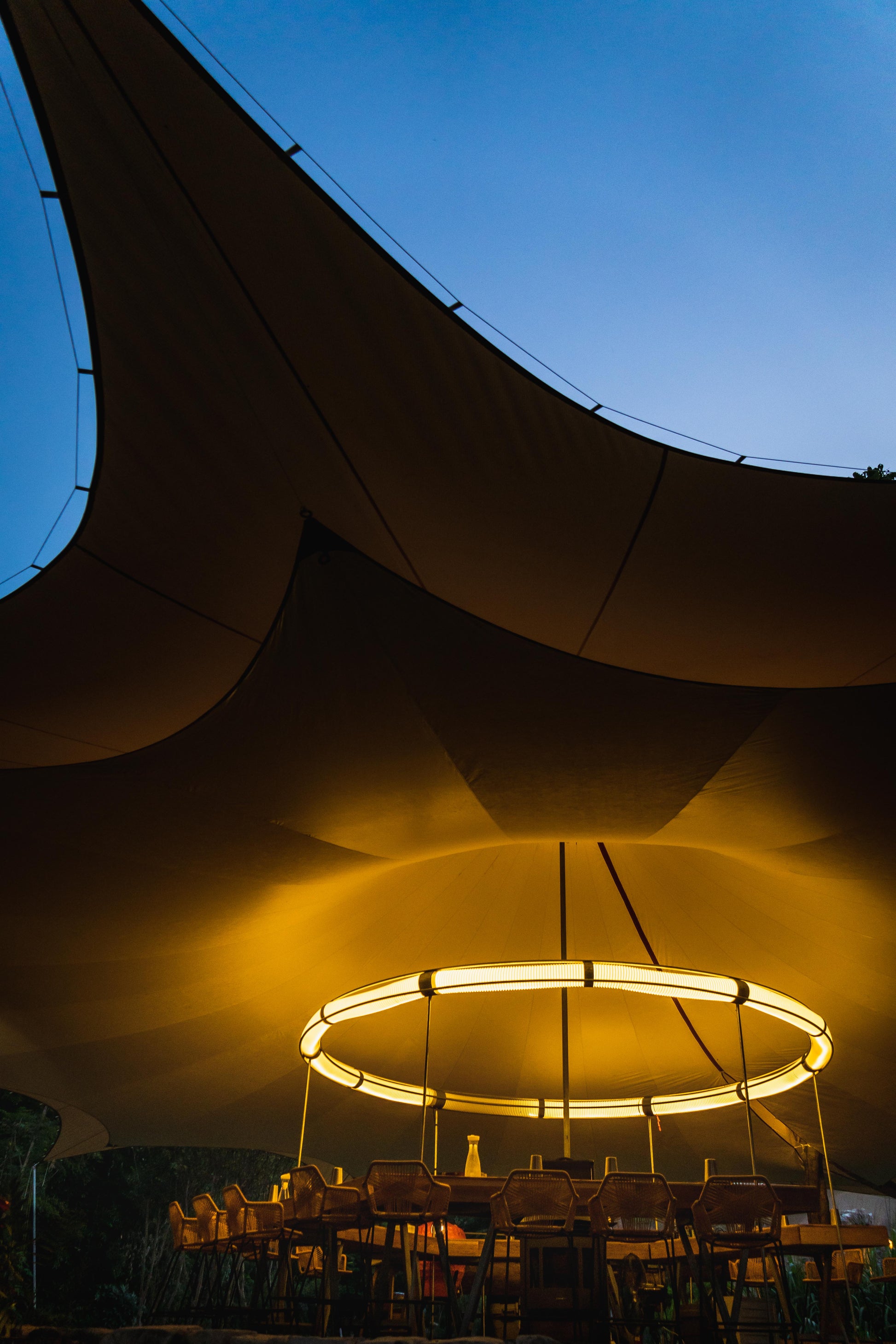

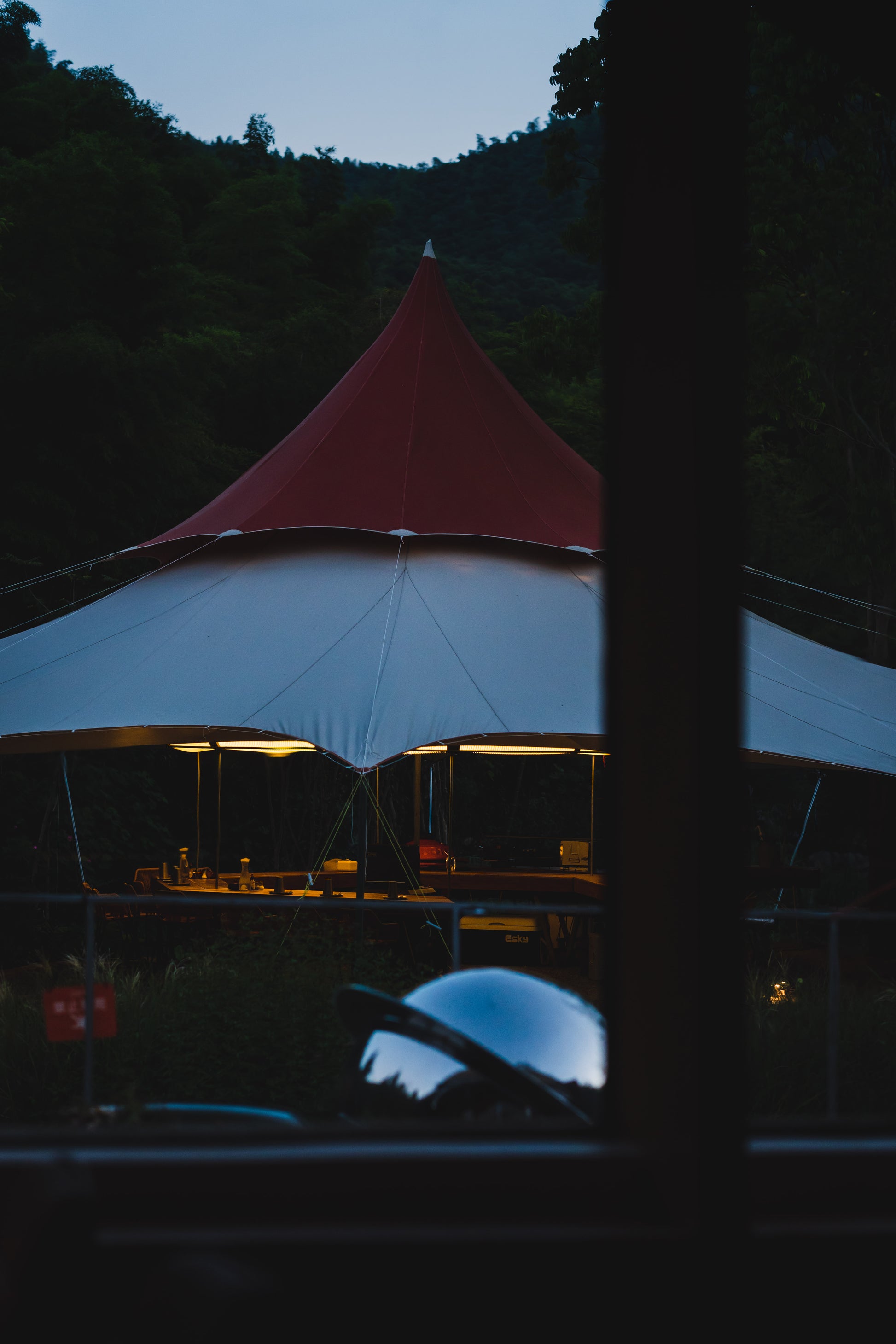

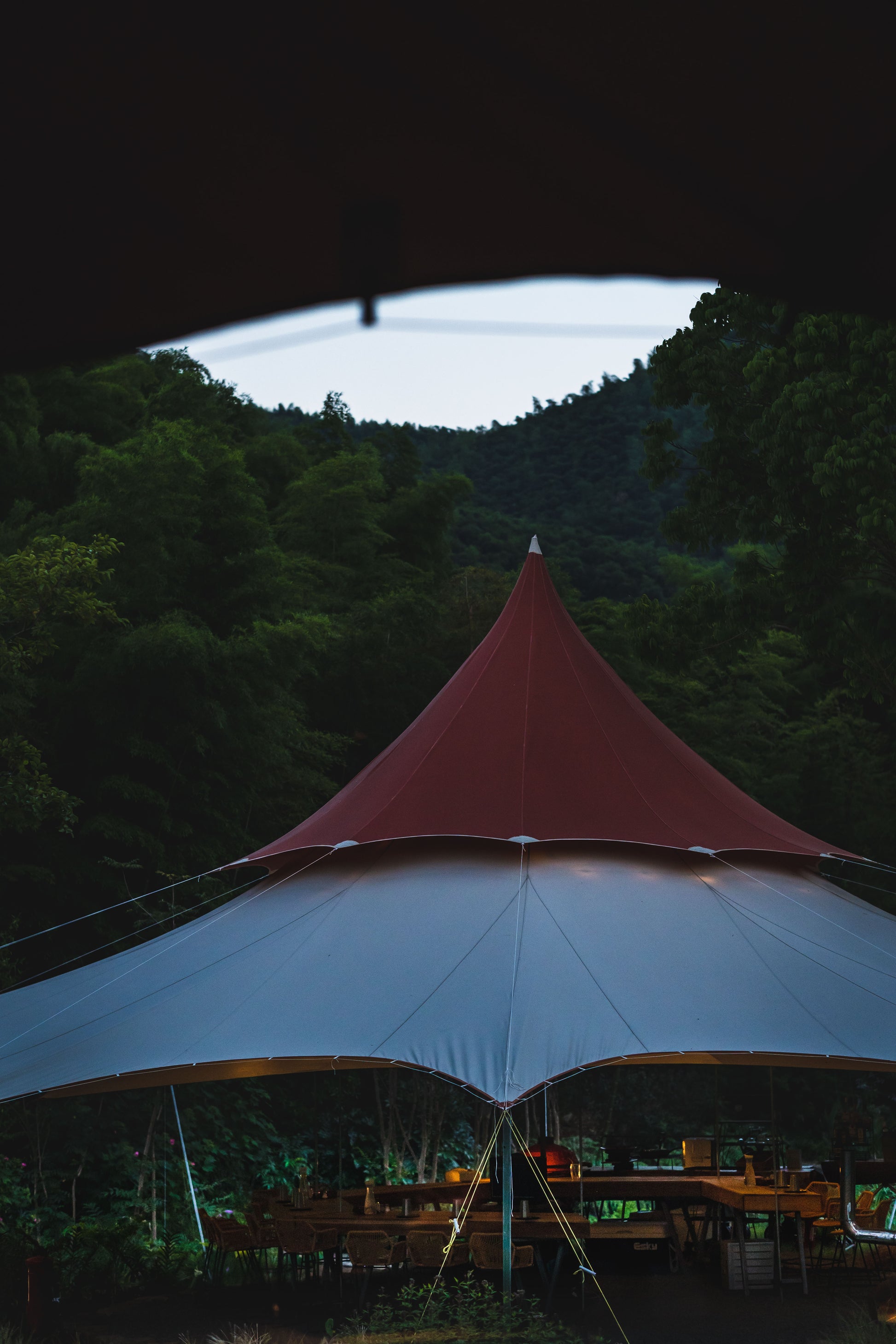

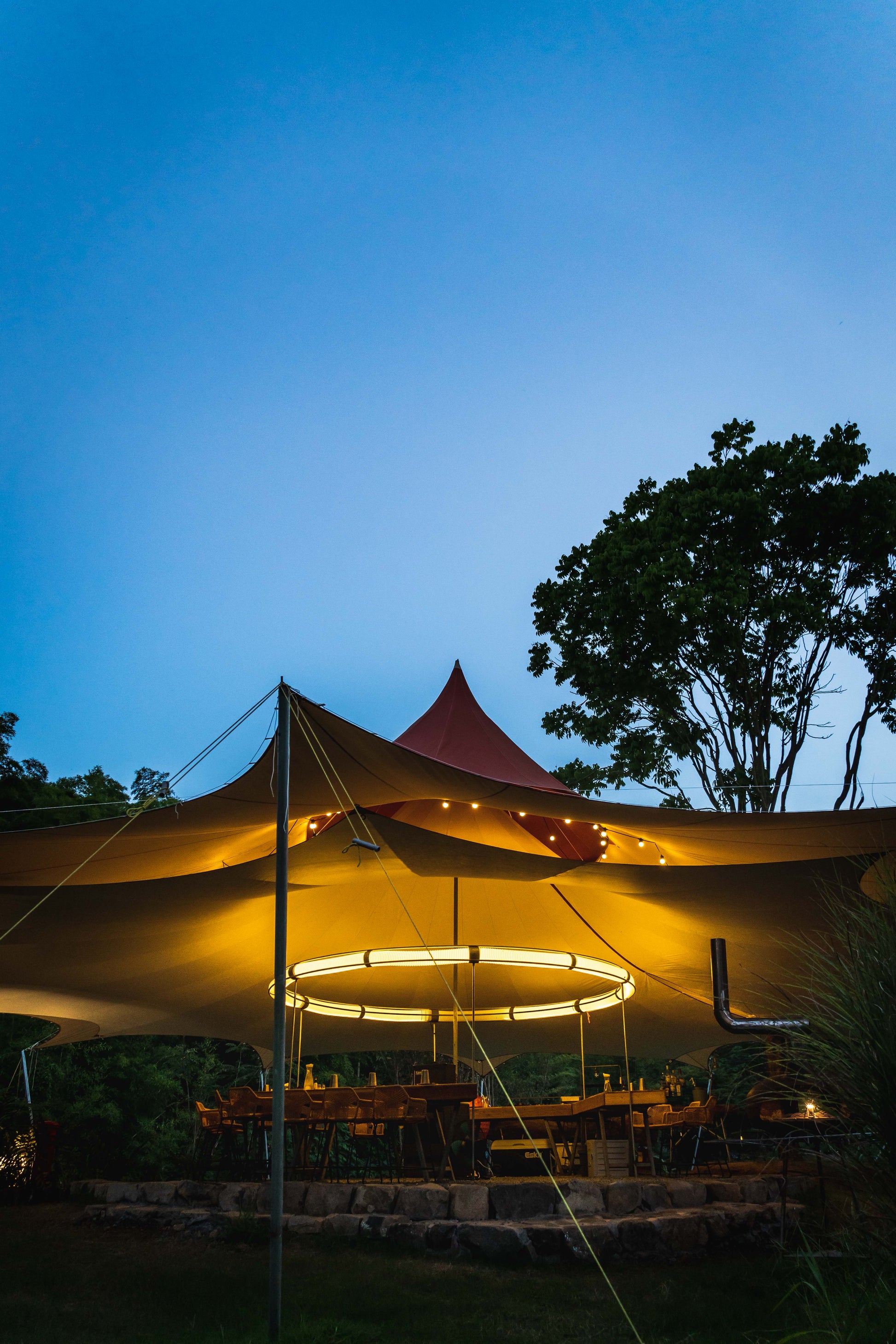

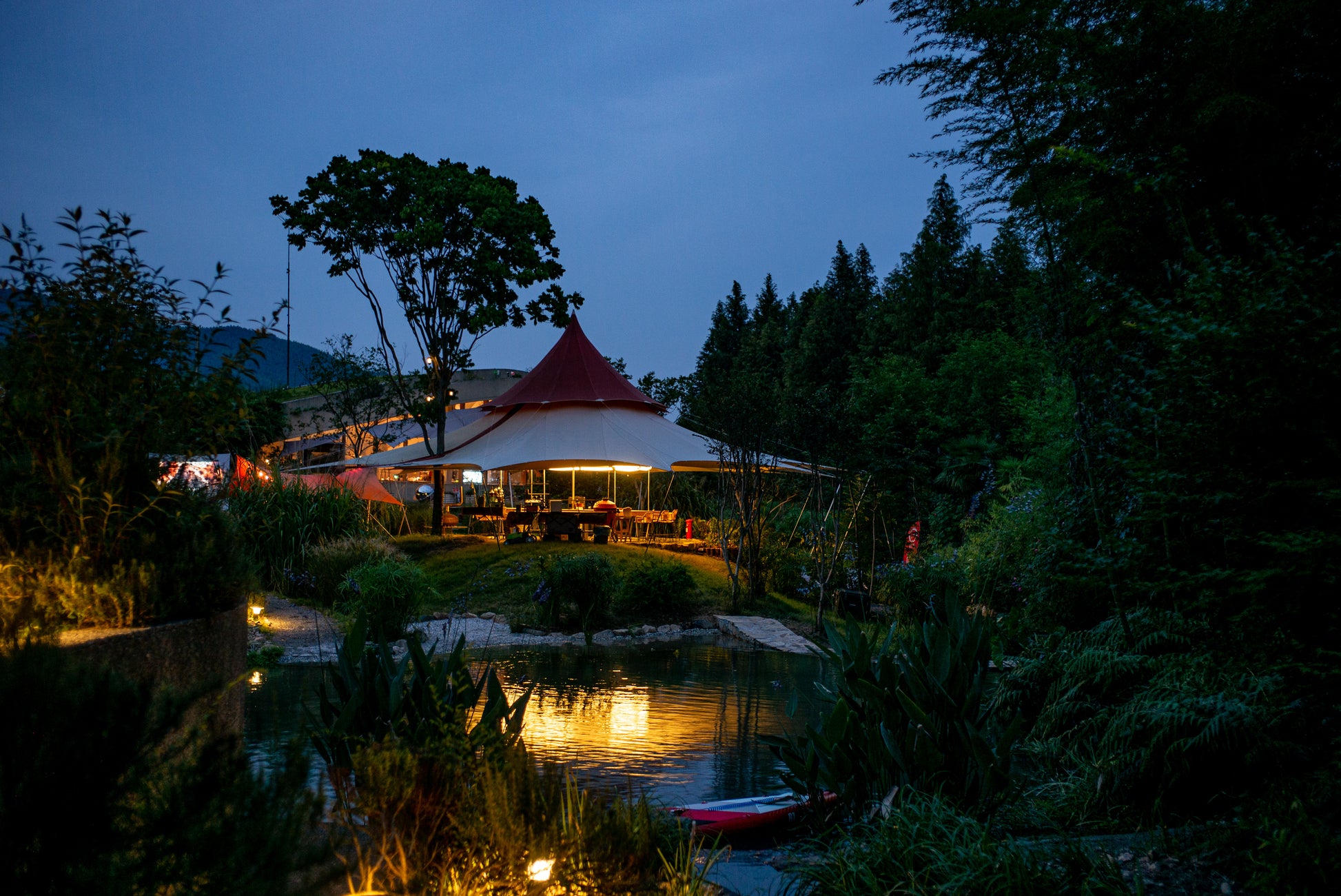

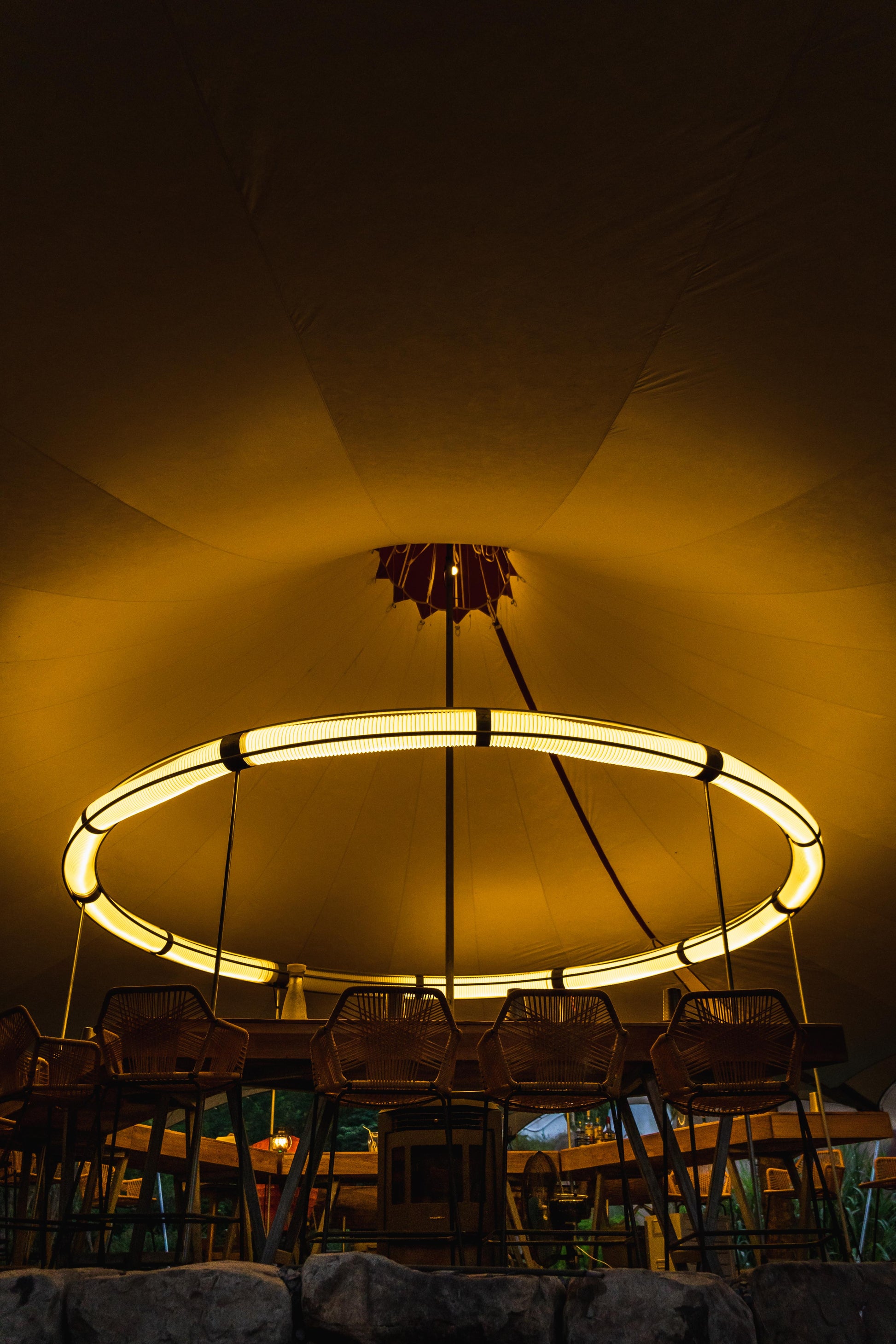

The Volcano tent boasts a desert-colored body and a red canopy, providing excellent 360-degree views. Ideal for large events, it never blocks photographers and its tall stature makes it a visual focal point. The traditional double-layer canopy not only adds an elegant shape but also allows hot air to escape quickly in summer, keeping the interior cooler.

Features:

• 360-Degree View: Offers an unobstructed environment, easy access, and creates an open, welcoming campsite atmosphere.

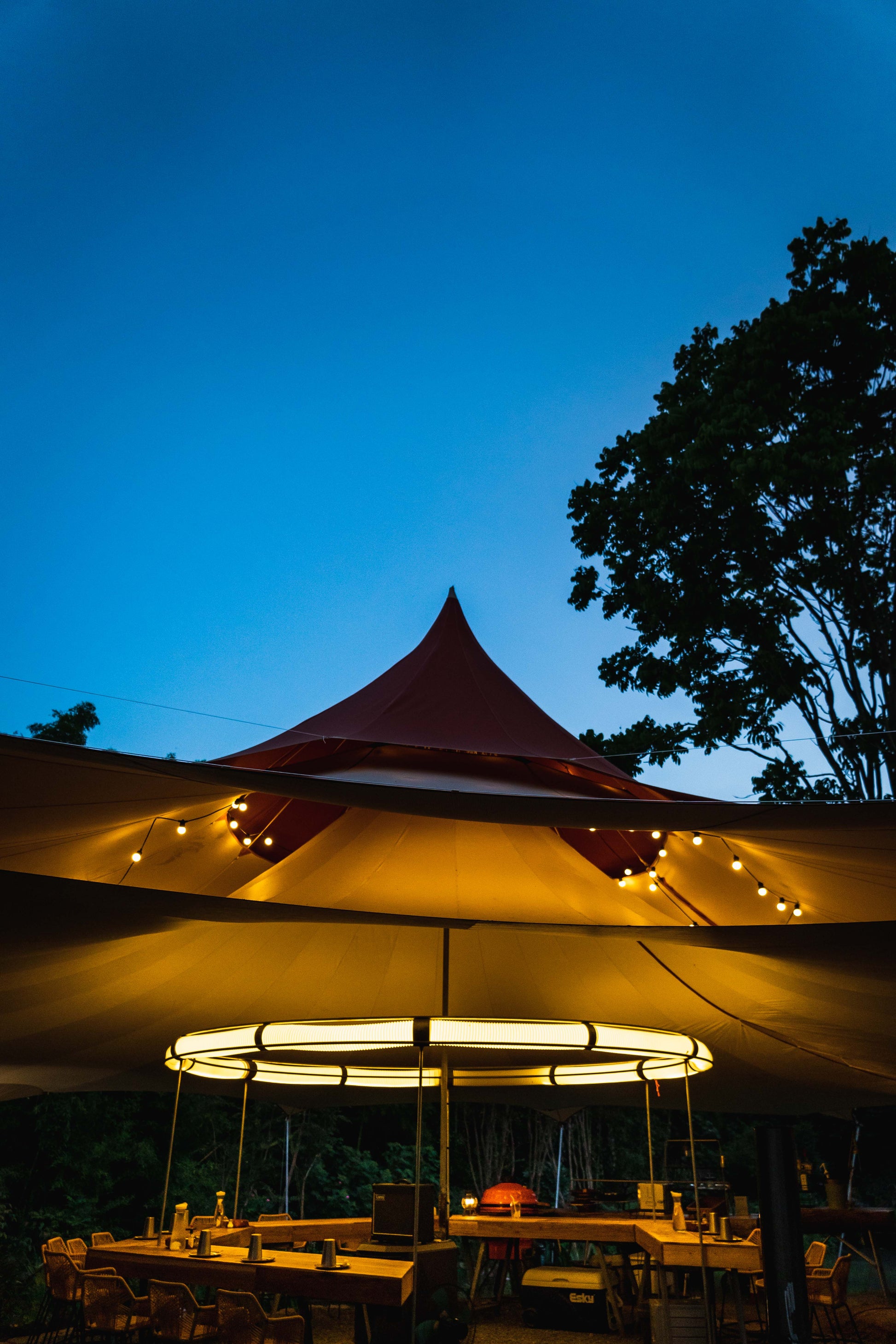

• Reverse Pull Straps: Increase tent stability and provide attachment points for lightweight items like string lights or small lanterns.
• Large Size: 14-meter diameter accommodates dozens of people, ideal for large events such as lively dance parties.

Fabric:

• Reinforced Polyester:
  • Low moisture absorption ensures excellent mold resistance.
  • Blended long and short fibers create a rugged surface similar to traditional cotton canvas.
  • High-density warp and weft reinforcement enhance tensile strength, forming small grids on the surface.
  • Seams are untreated, allowing rainwater seepage. No additional coatings are applied, providing superior light-blocking and breathability to keep the interior cool in summer.

Specifications:

• Components:
  • Body: 1
  • Canopy: Polyester blend
  • Top Cover: Polyester blend
  • Corners: UHMWPE (Ultra-High Molecular Weight Polyethylene)
• Poles:
  • Central Pole: Aviation-grade aluminum, Φ80mm, total length 6300cm
  • Side Poles: Steel, Φ40mm, total length 200cm each
• Straps & Cables:
  • Pull Straps: UHMWPE
  • Fasteners: Galvanized U-shaped
  • Pull Cables: 5mm UHMWPE
• Materials: Polyester blend
• Weight: Total 170kg (Body: 70kg, Metal Parts: 100kg)
• Storage Size: 77 cm (L) × 36 cm (W) × 23 cm (H)

Dimensions:

Plan Dimensions: e – Maximum Diameter: 14 m f – Canopy Diameter: 3 m g – Side Pole Base Distance from Center Pole: 6.5 m h – Ground Tie Point Distance from Center: 11 m

Vertical Dimensions: a-b – Overall Height: 6.3 m a-c – Canopy Height: 4.2 m c-d – Side Pole Vertical Height: 1.9 m
